Filter Holder for PM10-LV and PM2.5 Impactor
Model PM10-FL-LV is the filter holder used in PM10 low volume and PM2.5 impactor sampling trains. It accepts a standard 47 mm filter disc on a support screen, and the two halves close on an O-ring so that no air bypasses the filter. Because it sits downstream of the impactor or cyclone, it collects the size-selected fraction and opens by hand for a fast filter change in the field.
| Model Number: | PM10-FL-LV |
| Product name: | filter holder for PM10-LV and PM2.5 impactor |
| Application: | holding a 47 mm filter in a low volume sampling train |
| Main Material: | aluminum, clear anodized |
| Measure: | 100x80x135 mm |
| Weight: | 0.5 kgs |
| Packing meas.: | 9x9x15cm |
| ERP NO.: | 98082-000-406 |
| Shipment: | From stock |
| Warranty: | 3 years |
What the Filter Holder Is
PM10-FL-LV is the filter stage of a low volume sampling train. It holds a 47 mm filter disc and a support screen, and it sits downstream of the PM2.5 impactor or cyclone, where the air has already been size-selected. The holder is machined from aluminum and clear anodized, and it measures 100x80x135 mm at a weight of 0.5 kgs.
It is supplied both as a spare part for existing stations and as a component of the low volume samplers we build, so the same holder is used whether a customer orders a complete train or replaces one part.
How the Seal Works
The holder opens into two halves. The filter disc rests on the support screen in the lower half, and when the halves close they compress an O-ring around the disc. Air can then only pass through the filter medium, not around its edge.
This detail decides whether the sample is valid. A small leak at the edge dilutes the deposit with unfiltered air and produces a mass lower than the true value, and no correction can recover it after the run. Keeping the O-ring clean and the sealing faces free of grit is the main maintenance task.
Applications
The holder is used in ambient PM10 and PM2.5 low volume monitoring, in research programmes that need a filter for chemical analysis, and in laboratory and field validation work for low-cost sensor networks. Because it accepts the standard 47 mm disc, laboratories can keep their existing filter weighing and conditioning procedures without changing equipment.
Field staff who service several stations usually carry spare support screens and O-rings so that a holder can be brought back to condition during the same visit, without a second trip.
Packing and Lead Time
Each holder is packed in a 9x9x15 cm carton and ships from stock under ERP number 98082-000-406 with a three year warranty. It is commonly ordered together with 47 mm filter paper, support screens and the impactor above it, so that a station can be equipped from a single shipment. OEM versions with alternative connections or private-label packing are quoted on request.
Sealed Against Bypass
The two halves of the holder close onto an O-ring, so every litre of sampled air has to pass through the filter medium. Air that leaks around the edge of the disc dilutes the deposit and produces a mass that is lower than the true value, and no correction can recover it after the run. A clean seal at the holder is therefore as important as the accuracy of the inlet above it.
Accepts the Standard 47 mm Filter

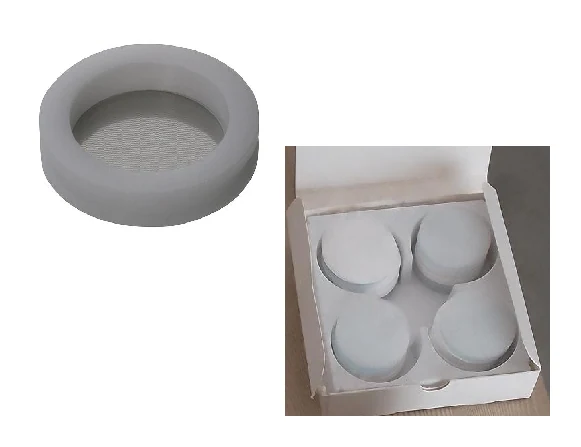

The holder takes the 47 mm filter disc used by low volume PM10 and PM2.5 methods, together with a support screen that keeps the disc flat under the pressure drop of the pump. Because the consumable is a standard size, buyers can source filters from any qualified supplier without changing the hardware.
Quick to Open in the Field
Filter changes are the most frequent task in a sampling programme, and the holder is designed to keep them short. The halves separate by hand, the disc lifts out, and a new disc and support screen go back in the same way. That reduces the time a technician spends at the station and the risk of disturbing the sample.
Machined and Anodized for Repeated Cleaning
At 100x80x135 mm and 0.5 kgs the holder is compact and light, and it is machined from aluminum with a clear anodized finish. The surface tolerates the repeated wiping and drying that follow a filter change, so the sealing faces stay in good condition over many sampling cycles.
Stock Item with a Three Year Warranty
The holder ships from stock under ERP number 98082-000-406 with a three year warranty. It is supplied on its own as a spare and as part of our low volume sampling trains, and OEM buyers can request modified connections, private-label packing or volume pricing.
