PM10 Low Volume Air Sampler Inlet
PM10 inlet lower volume ,is used to low volume air sampler system in the industry, it could be matched difference brand cabinet, easy operate and good match.
| Product name: | PM10 inlet lower volume |
| Model Number: | PM10-LV |
| Application: | Outdoor air sampler,PM10 lower volume |
| Assembly request: | Match most brand electronic parts |
| Main Material: | Aluminum Alloy |
| Measure: | 271.5×247.2×401.4mm |
| Weight: | 2.5KGS |
| Craft Process: | metal spinning / CNC |
| Surface treatment: | High brushed, anodized |
| Packing box meas.: | 32×30.5x44cm |
| Warranty: | 5years |

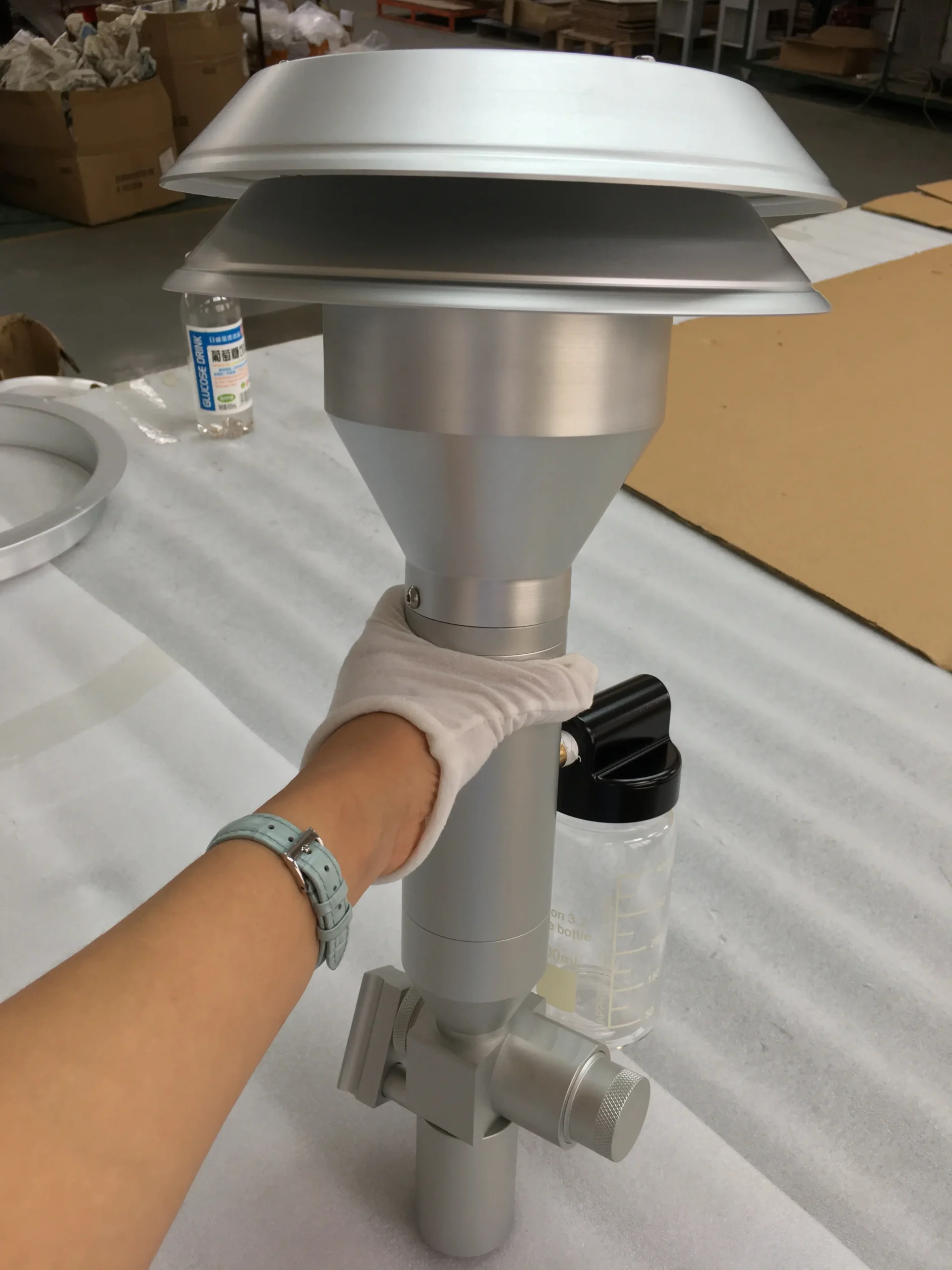

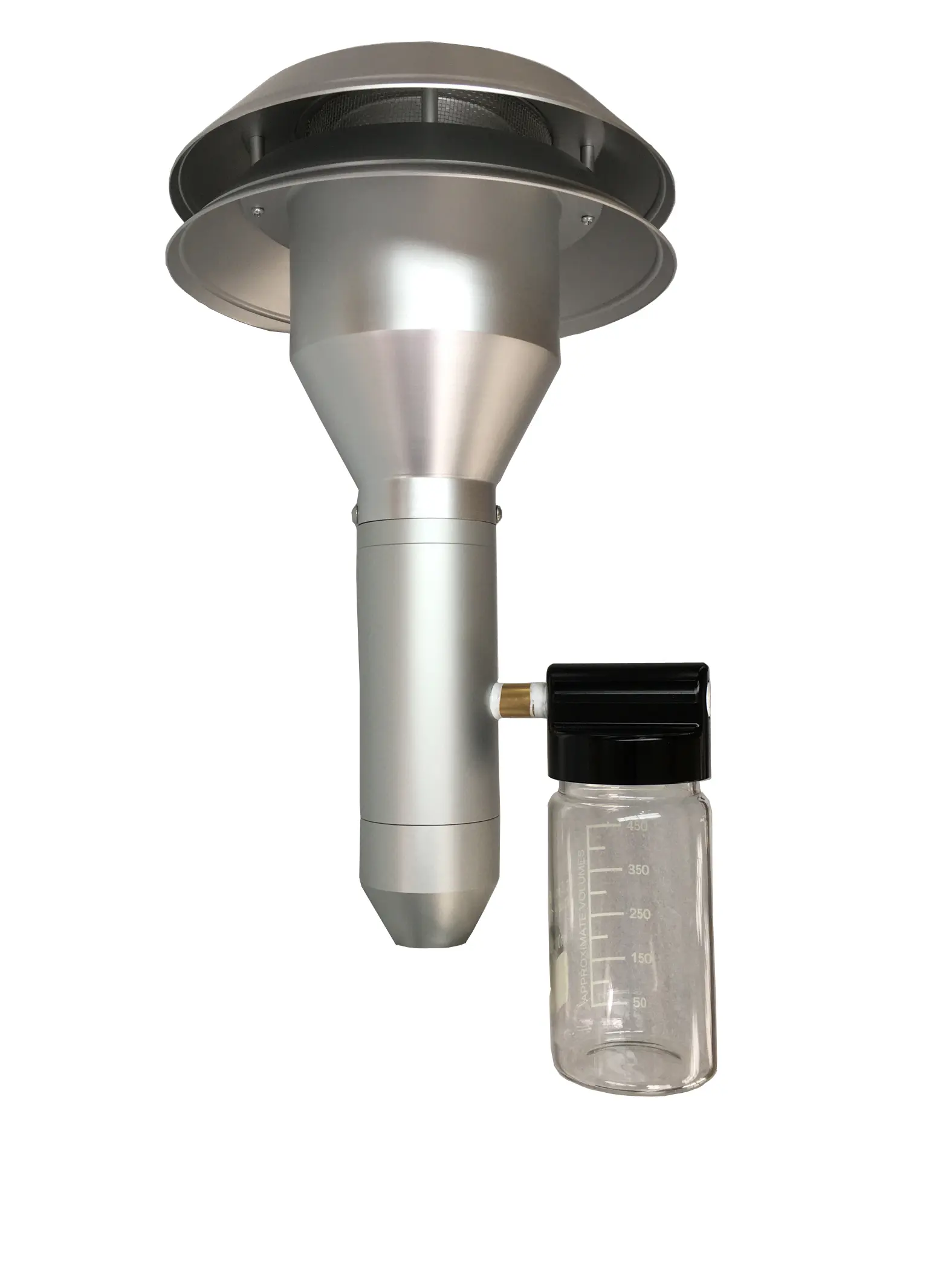

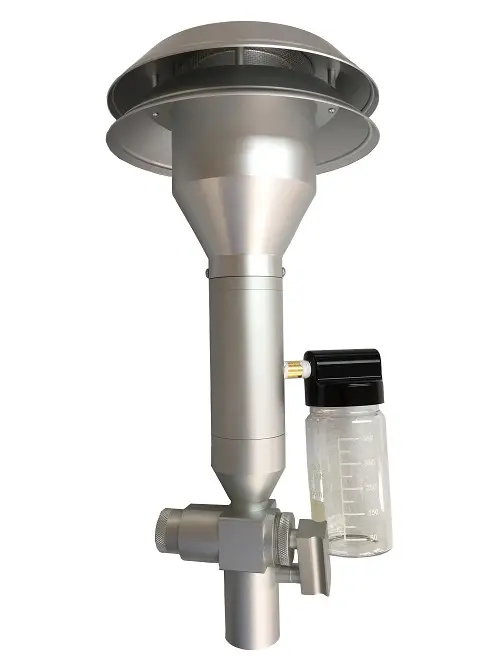

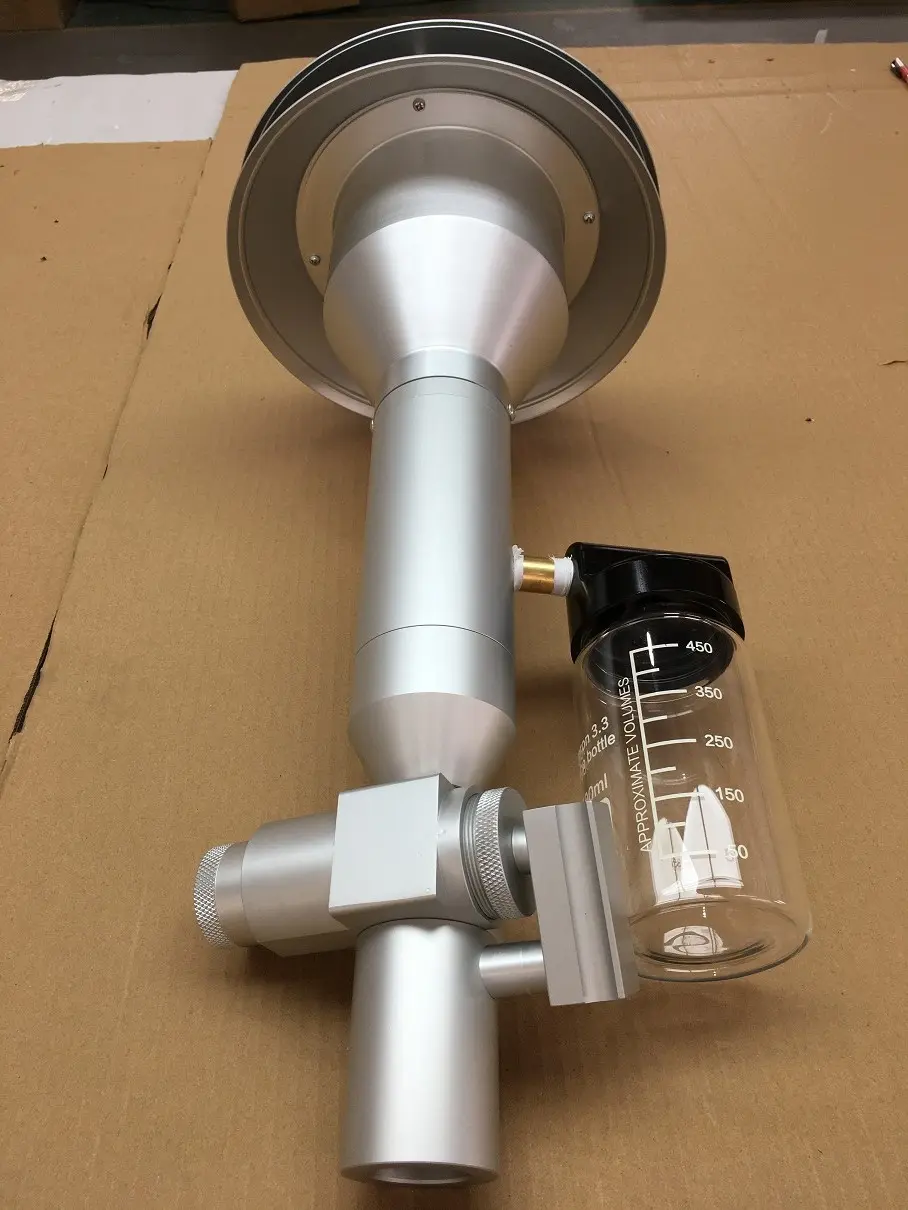

PM10 Low Volume Inlet Overview
The PM10-LV is a compact inlet component designed specifically for low volume air sampling applications, differing from our high volume PM10 series in both scale and application. With dimensions of 271.5 x 247.2 x 401.4 mm and a weight of approximately 2.5 KGS, this inlet is suited for lightweight, space-constrained monitoring setups.
Construction
Made from aluminum alloy using metal spinning and CNC machining processes, the PM10-LV features a high brushed and anodized surface finish for durability in outdoor environments. Each unit comes with a 5-year warranty.
Broad Compatibility
This inlet is designed to match most brand electronic parts and cabinet systems, making it a flexible choice for OEM integration into existing or third-party low volume air sampler systems.
Looking for a Complete Cabinet Solution?
If you need a matching base cabinet, see our PM10-LVCabinet for Outdoor PM2.5/PM10 Air Sampler Quality Monitoring.
PM10-LV inlet for low volume air sampler systems. Designed to be compatible with various brand cabinets, our PM10-LV inlet guarantees an easy-to-operate and well-matched solution for your air sampling needs.
Designed for Low Volume Air Sampling Systems
The PM10-LV inlet is engineered specifically for low volume air sampling applications, offering a compact alternative to high volume systems for installations with different flow rate or space requirements.
Cross-Brand Compatibility
This inlet is designed to match most brand cabinets and electronic systems, allowing it to integrate into existing low volume air sampling setups without requiring a full system replacement.
Manufacturing Background
T4 Air Sampler has over 20 years of metal spinning experience and more than 15 years specializing in air sampler component manufacturing. Our production combines metal spinning and CNC machining to ensure consistent dimensional accuracy across every unit.
Order Flexibility
Standard PM10-LV inlets are available for both small batch orders and bulk production. For custom specifications, we also offer OEM/ODM development services.
